Free Kenmore sewing machine threading diagrams

Below are some of the most common threading diagrams. Many will work for other models of Kenmore sewing machine.

Click on the image to enlarge

117.552 812 813

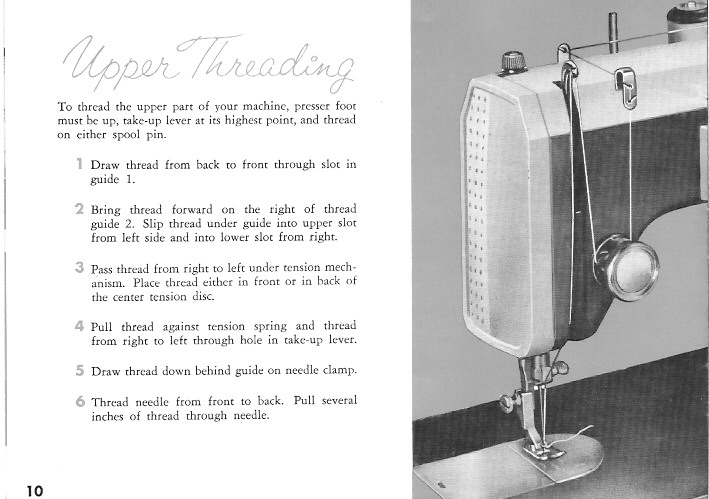

117.841

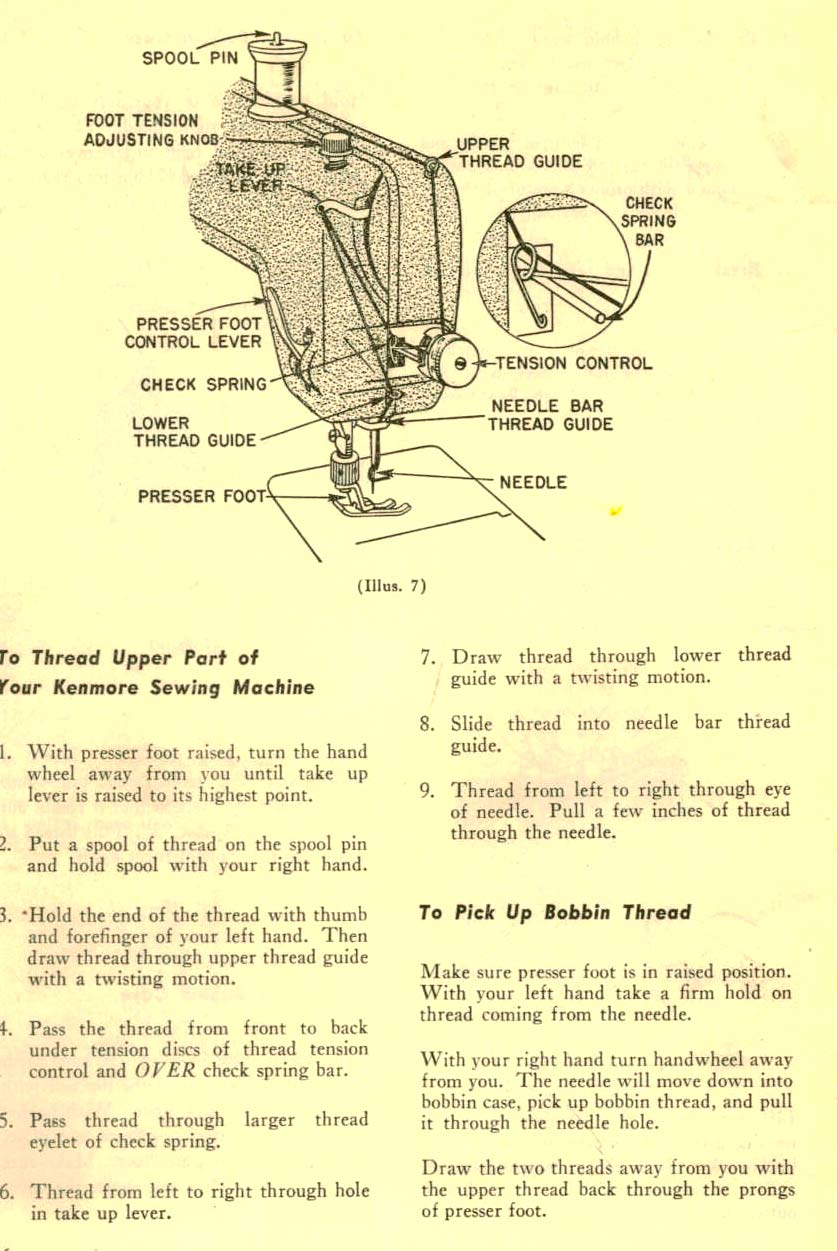

120.49

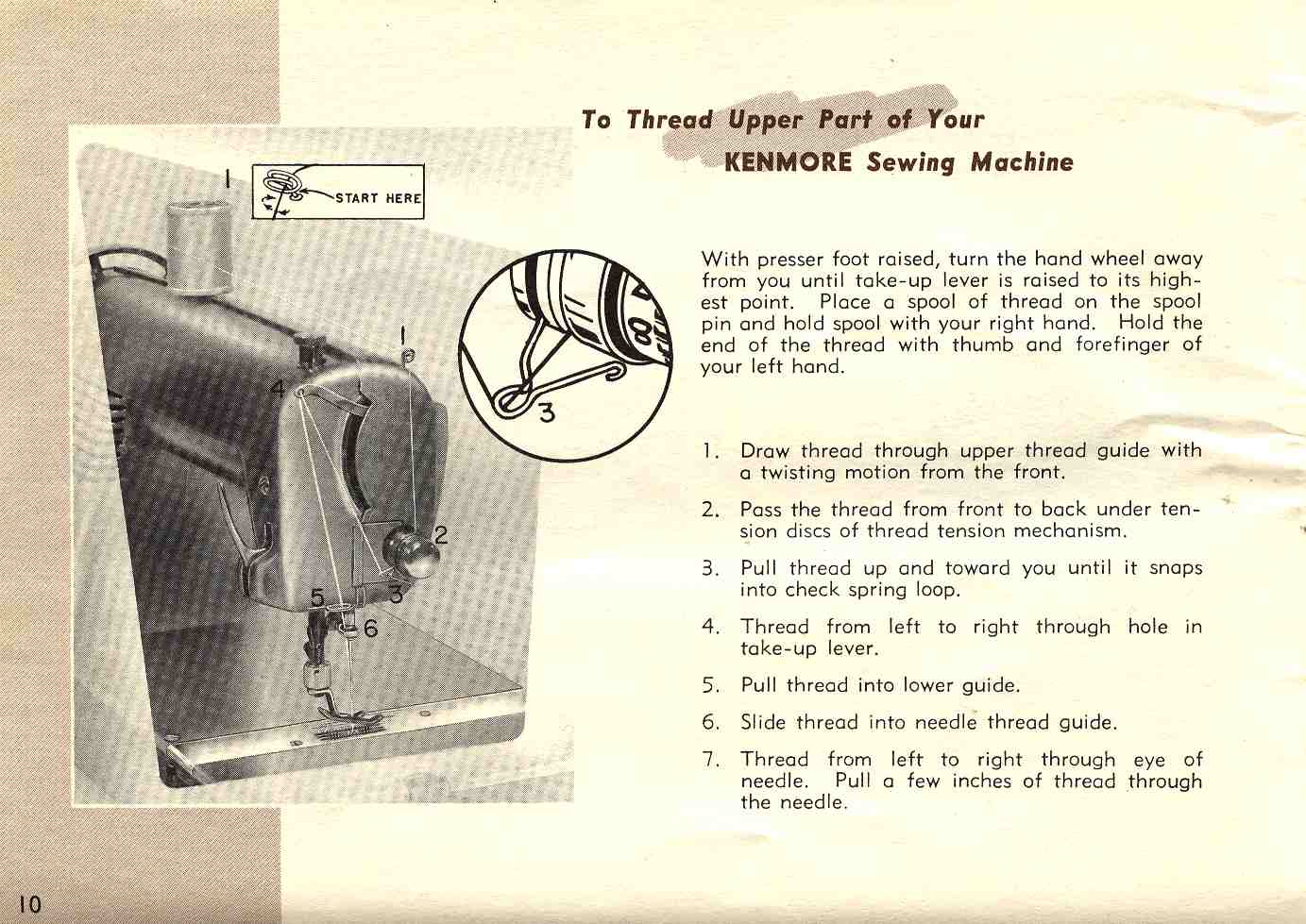

120.71

148.1230 1240 1250

148.1310 1222 1322 1422

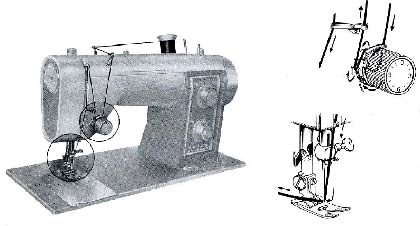

158.160

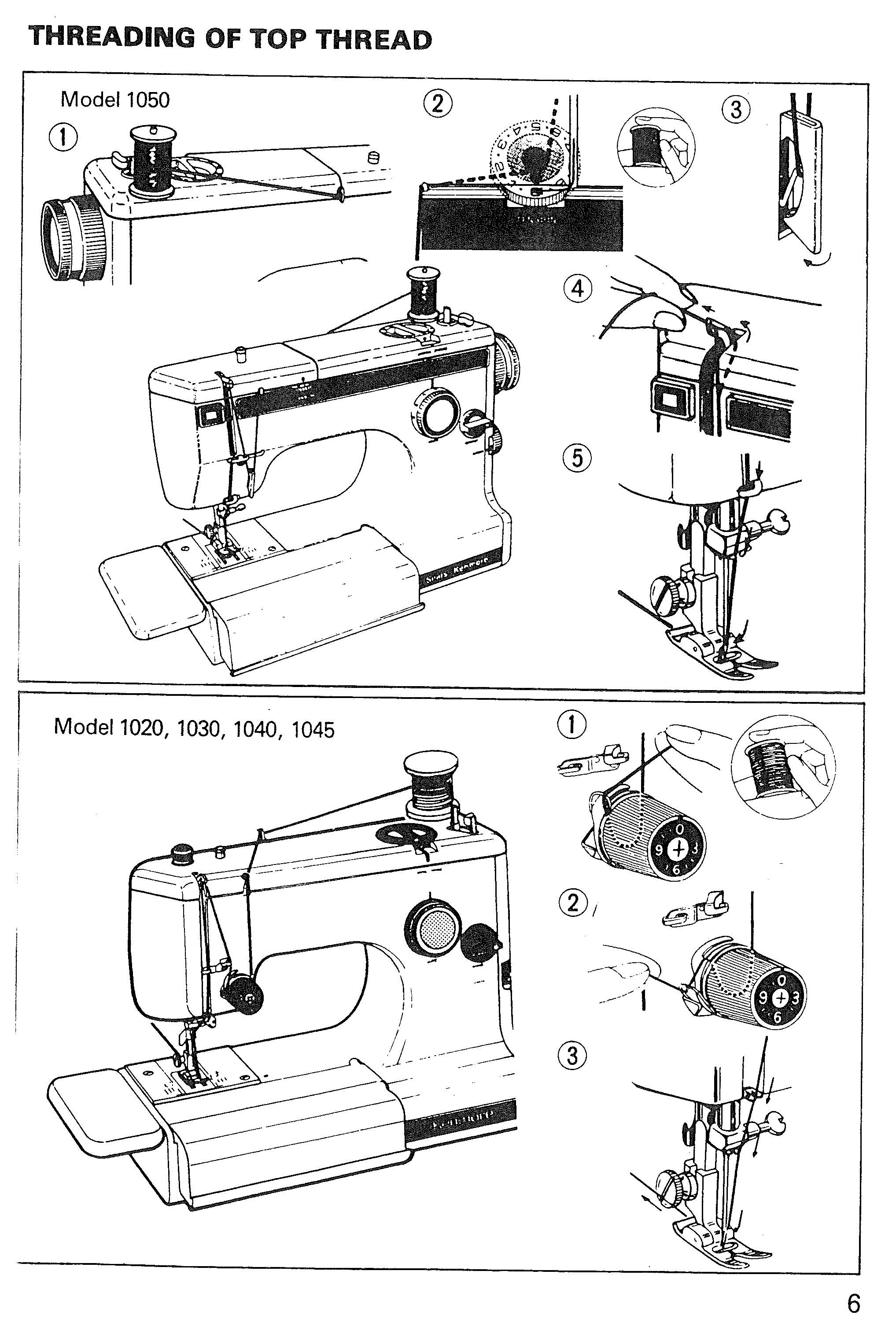

158.1020 - 1050

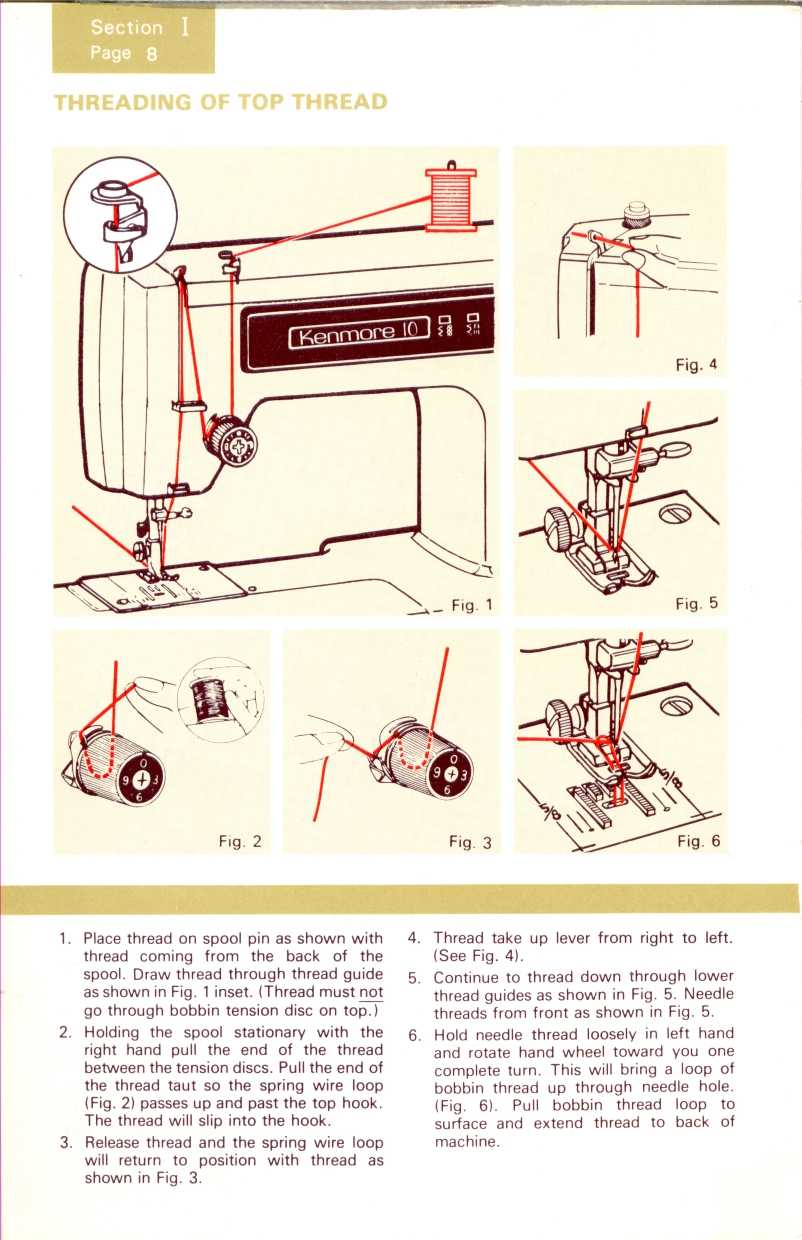

158.1212 1229 1239 1241 1251 1252 1341

158.1219

158.1262

158.1320

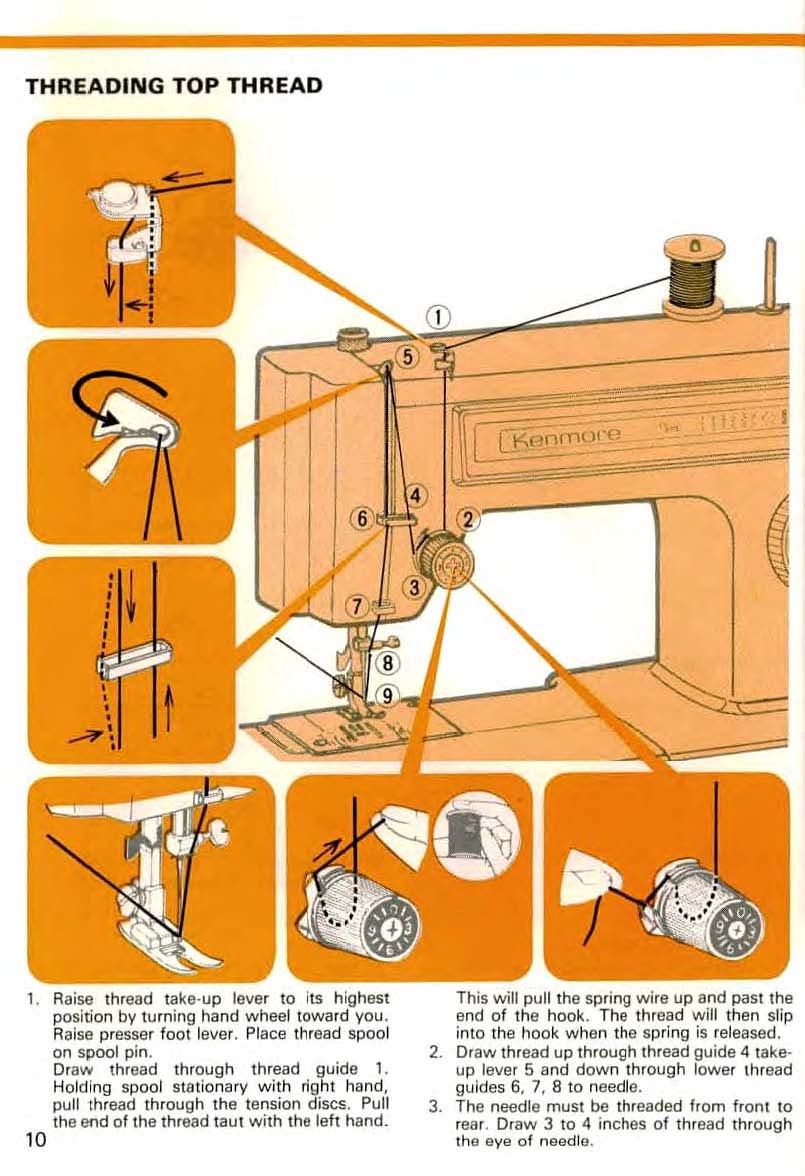

158.1340 1350

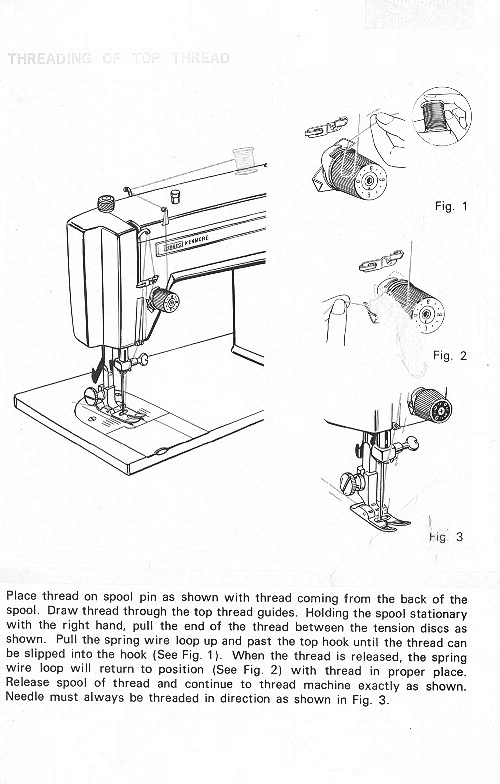

158.1400 1410

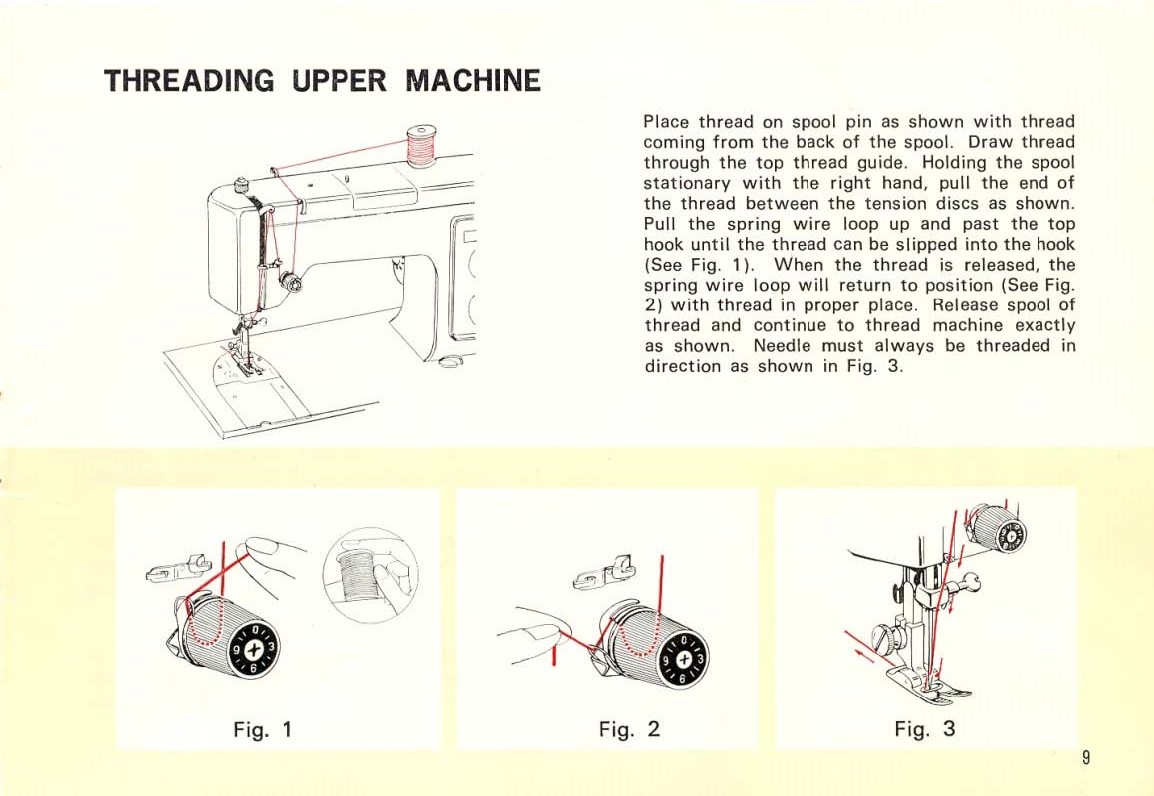

158.1504 - 1516

158.1601 1602 1701 1801

158.1650 - 1653

158.1580 - 1786

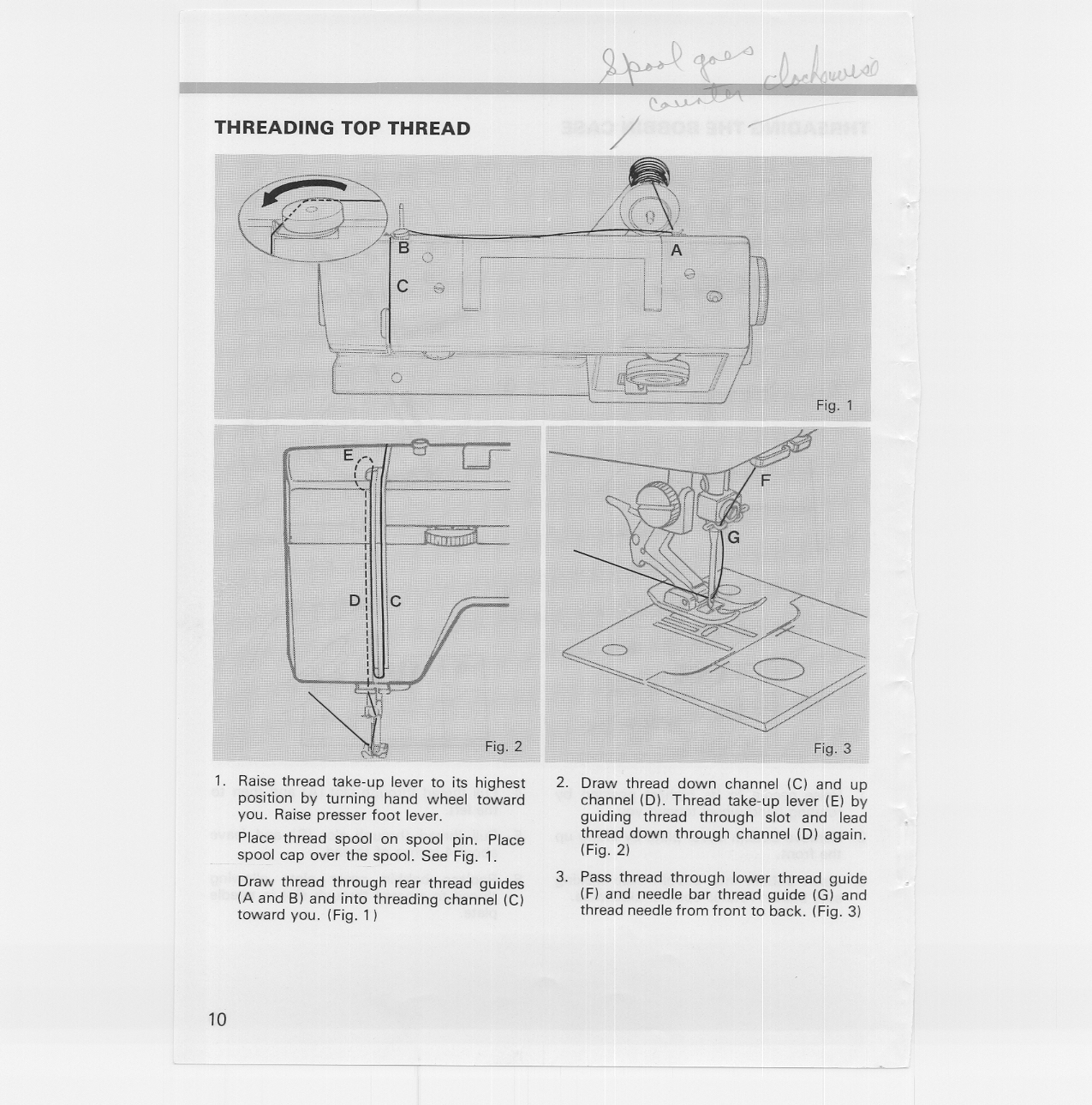

158.176 - 178 series

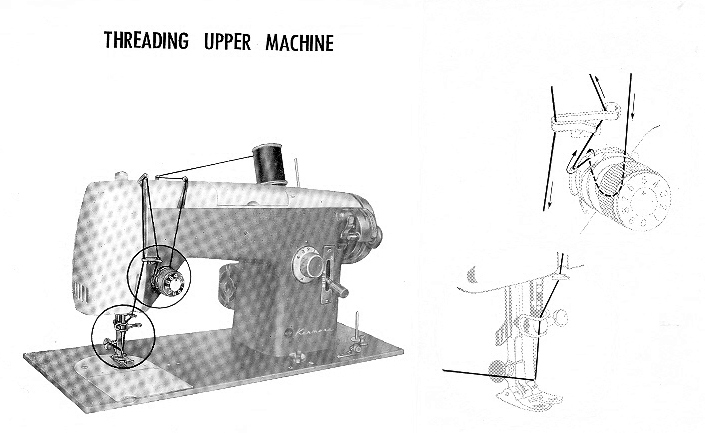

158.52

385.1154 - 1284

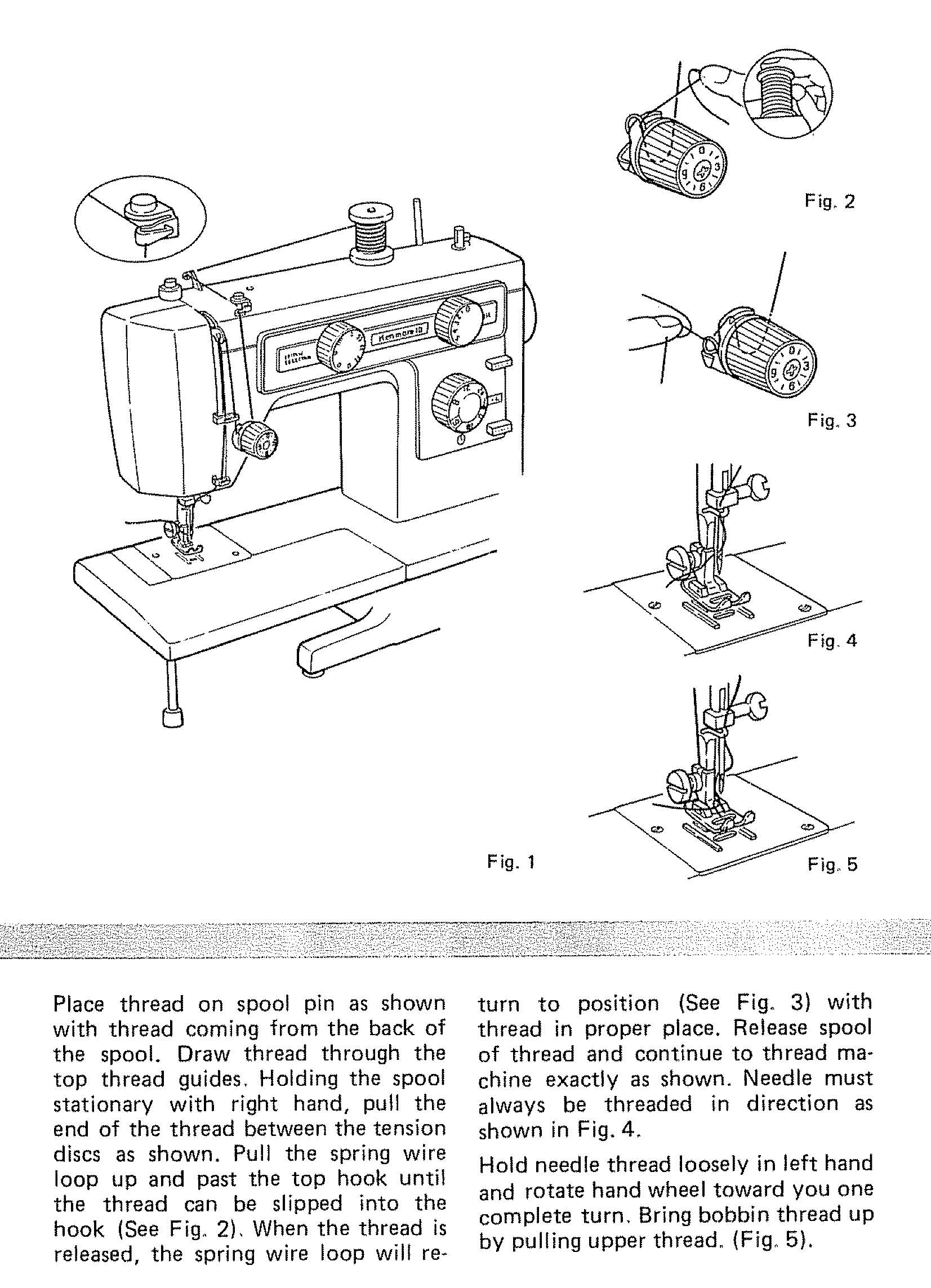

385.1249

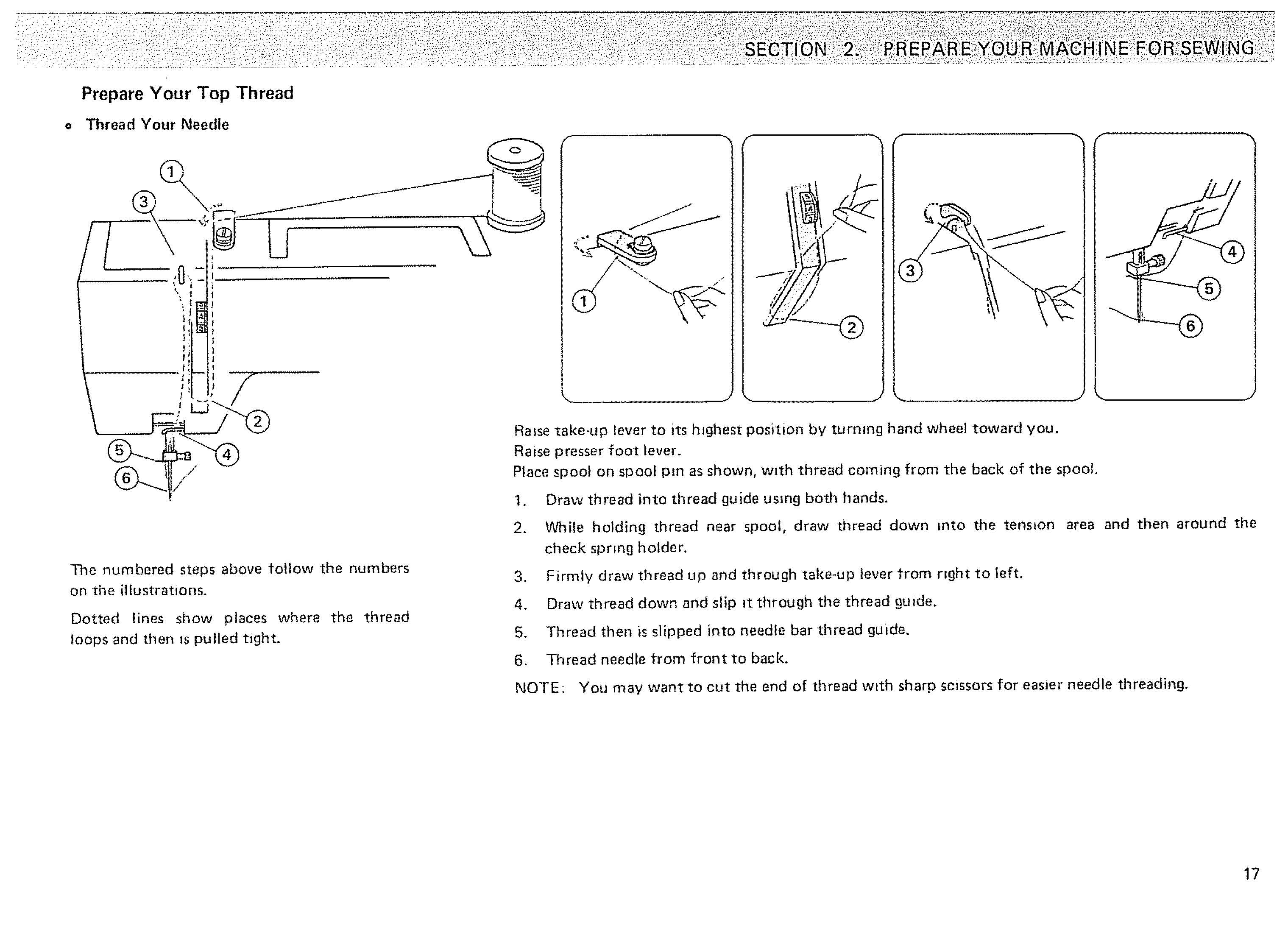

385.15841 - 17841

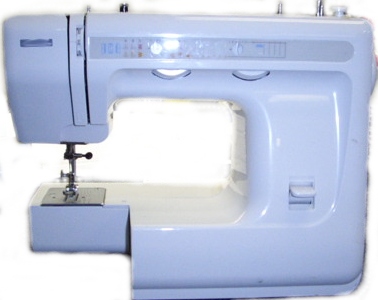

385 models like the ones pictured.

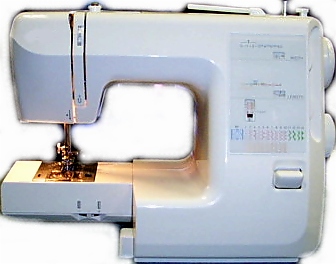

385 models like the ones pictured.

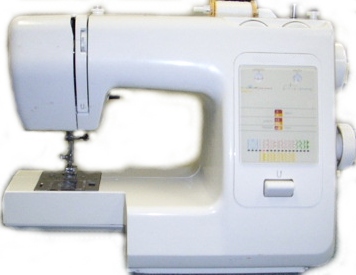

385 models like the ones pictured

385.19000 19001

385.19010
